Product Details

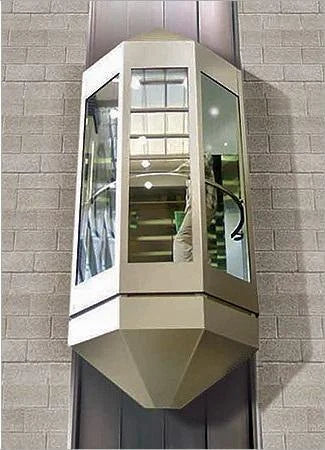

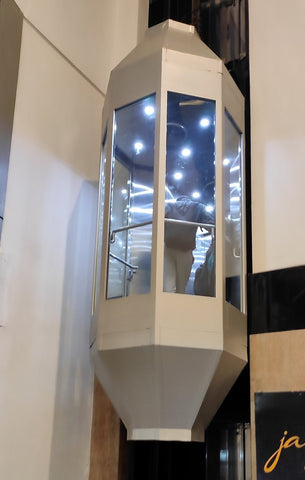

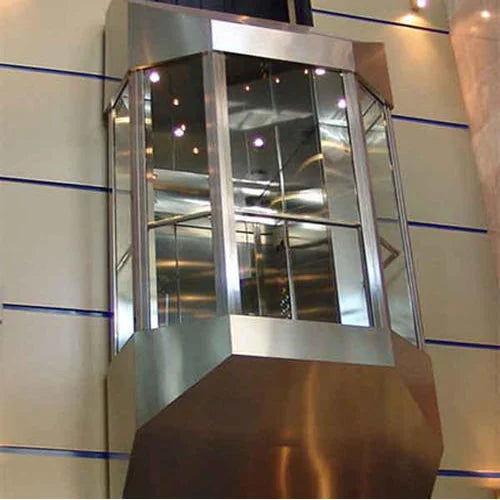

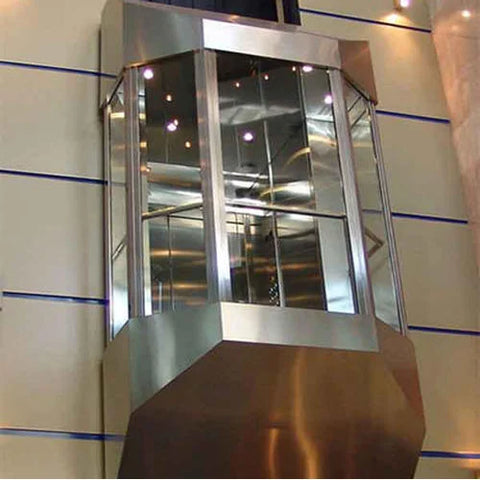

x1. Number/Type of Elevators : Hydraulic Elevators
2. Capacity : 6 PERSON , 408 KG
3. Speed/ Drive : 0.50Meter per Second,
4. Location of Machine Room : No
5. Total Travel : ....... Meter (Approx.)
6. Hoist way Enclosure Type : RCC
7. Floor Destination : G + 1 = 2 STOP
9. Available Lift Shaft : 1220 MM Width×1220MM Depth.(APPROX)
10. Car Size :0000MM Width × 0000MM Depth ×2400 MM High
.(APPROX)
11. Head Room(OVER HIGHT) : 3500 MM
12. Pit Required : 1200 MM (Solid)
13. Power Supply Required :
415 Volts 3 Phase 50 Hz. AC & 220 Volts 1 Phase 50
Hz. A.C.

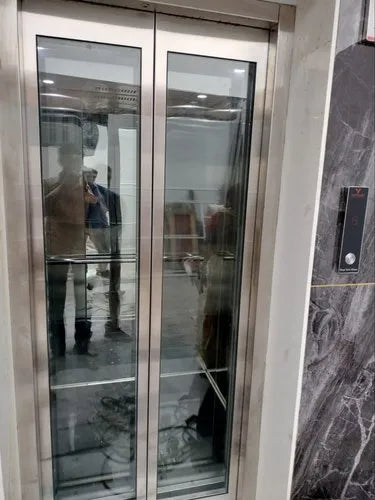

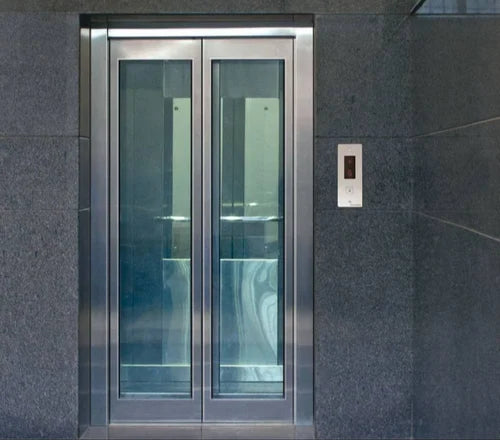

14. Car Entrance and Car : CENTER OPENING AUTO GLASS DOOR. / SIDE OPEN
AUTO GLASS DOOR.
15. Entrance Opening :
700 MM Width × 2200 MM High.
Customer Scope:-
1.2.1 One neat and clean room for material preservation
1.2.2 3 phase power supply up to the machine rooms and plug point with bulkhead
in duct.
1.2.3 Complete civil work in all respect for installation and commissioning of
elevators.
1.2.4 Provision of generator back up with AMF panel to the elevator.
1.2.5 Material required to be used by the customer for Elevators duct.
1.2.5.1 40 AMP 4 Pole MCB
1.2.5.2 40 AMP 100 MAMP 4 Pole MCB+ELCB
1.2.5.3 4.0 Square MM 4 Core 3 Phase wire
1.2.5.4 2.5 Square MM 2 Core 1 Phase wire
1.2.5.5 08 Gage copper earthling wire
